ARTICULATING VIDEOSCOPE
Milliscope HDX
High Resolution Articulating Micro Videoscope in 1.1 & 1.6 mm
Product Description

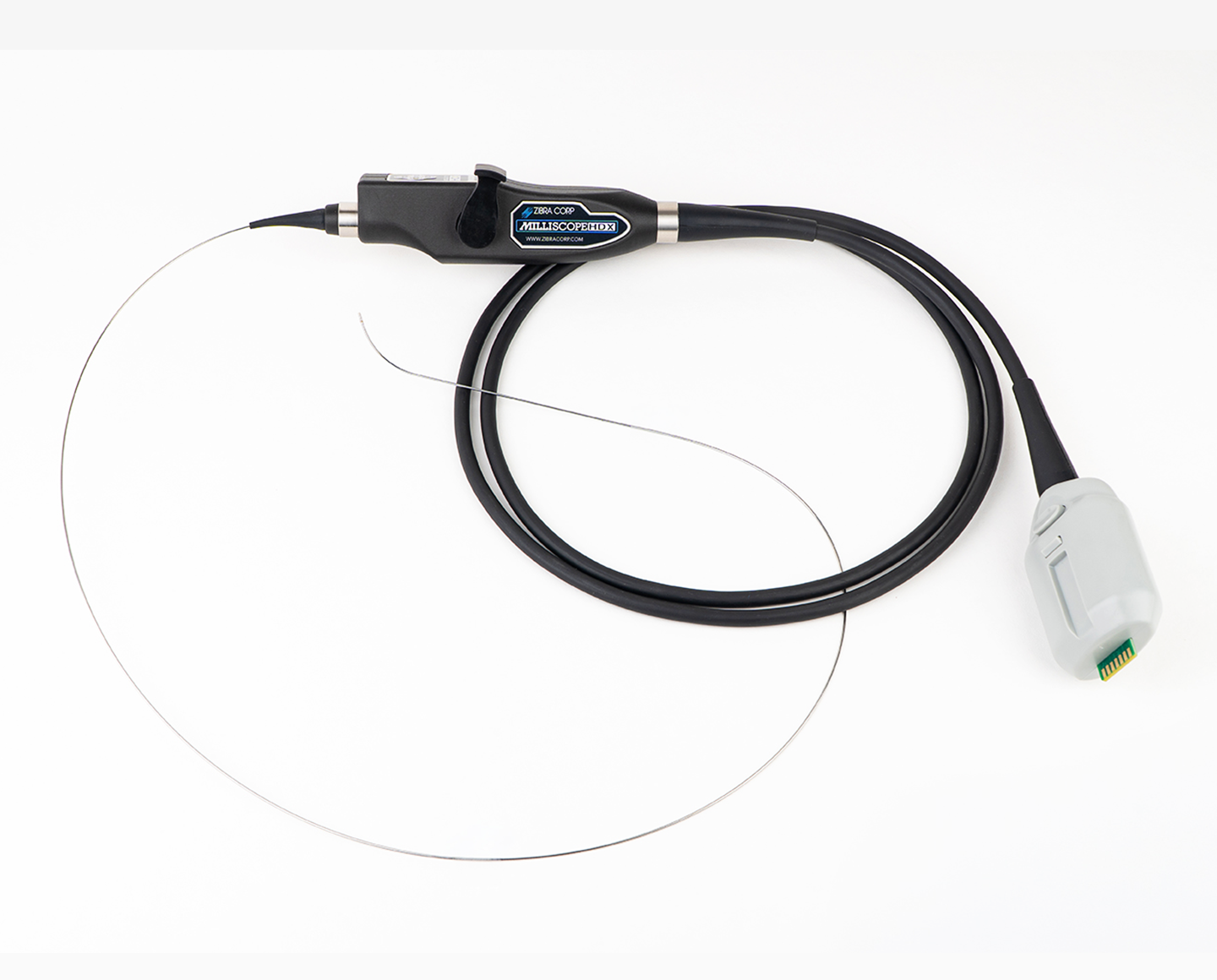

The Milliscope HDX is a high-resolution articulating micro video borescope engineered for precision inspection in confined, hard-to-reach spaces. Designed to connect seamlessly with the Milliscope HD base unit, it delivers two-way ±170° tip articulation in probe diameters as small as 1.1 mm and 1.6 mm, bringing steerable video inspection to passages too small for conventional articulating scopes.
Key Specifications
- Uses easily removable & interchangeable Milliscope HDX articulating videoscopes
- Scope Diameters: 1.1 & 1.6 mm ∅
- 2-Way Articulation: ±170° Up / Down
- Scope Shaft Lengths: 150 mm – 1.0 m
- Shaft Material: durable Shape Memory Metal
- Image Sensor: 160,000-pixel CMOS
- View Directions: 0° – 90° (product specific)
- FOV / DOF: 120° D-FOV / 1-50 mm depth of focus (custom optics available)
- w/ User selectable auto & manual camera exposure modes
- w/ Push button image rotation (90° increments)
- w/ Integrated, adjustable LED scope illumination system
- w/ Integrated push button image & video recording to USB storage drive
- w/ On screen text display for all LED and camera gain settings
- Base Unit accepts Fiberscope Camera Handle, HDV videoscopes & all HDX articulating videoscopes
Downloads
About This Item
The Milliscope HDX is a purpose-built articulating micro videoscope that brings steerable, high-resolution remote visual inspection to spaces most scopes cannot reach. Its defining feature is two-way ±170° tip articulation, letting inspectors steer the camera around bends and internal geometry a fixed-tip probe would miss. A miniature 160,000-pixel CMOS sensor paired with Zibra Corp’s optics delivers detailed video over HDMI, with image and video capture to USB, no external computer required.
With probe diameters of just 1.1 mm and 1.6 mm and lengths up to 1.0 meter, the Milliscope HDX is among the smallest articulating videoscopes available, reaching confined spaces where conventional articulating borescopes are too large to enter. That makes it well suited to aerospace and turbine work, including the cooling holes and internal passages of turbine blades, as well as precision inspection across manufacturing and energy. Each probe uses durable shape memory metal sheathing built for repeated use.

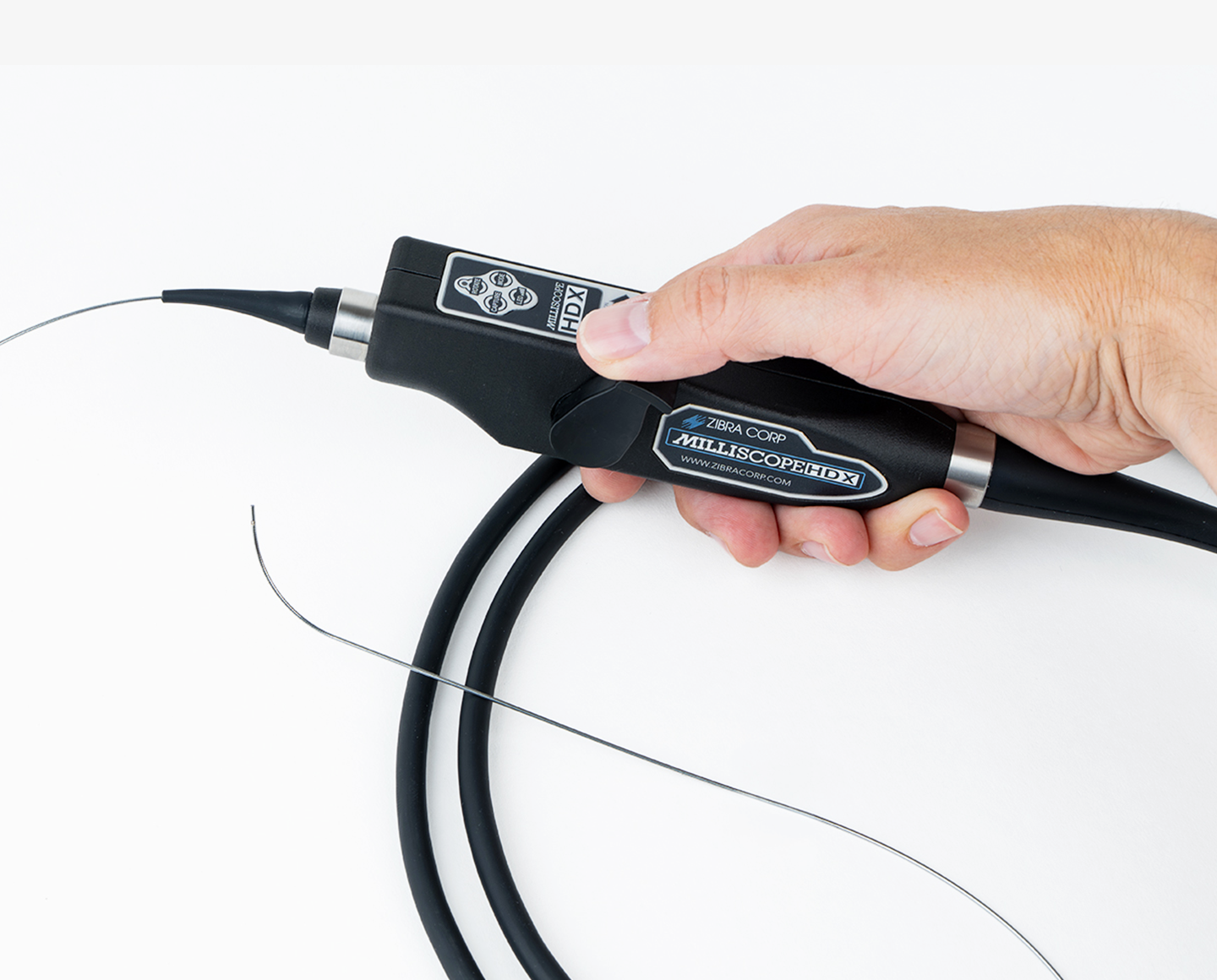

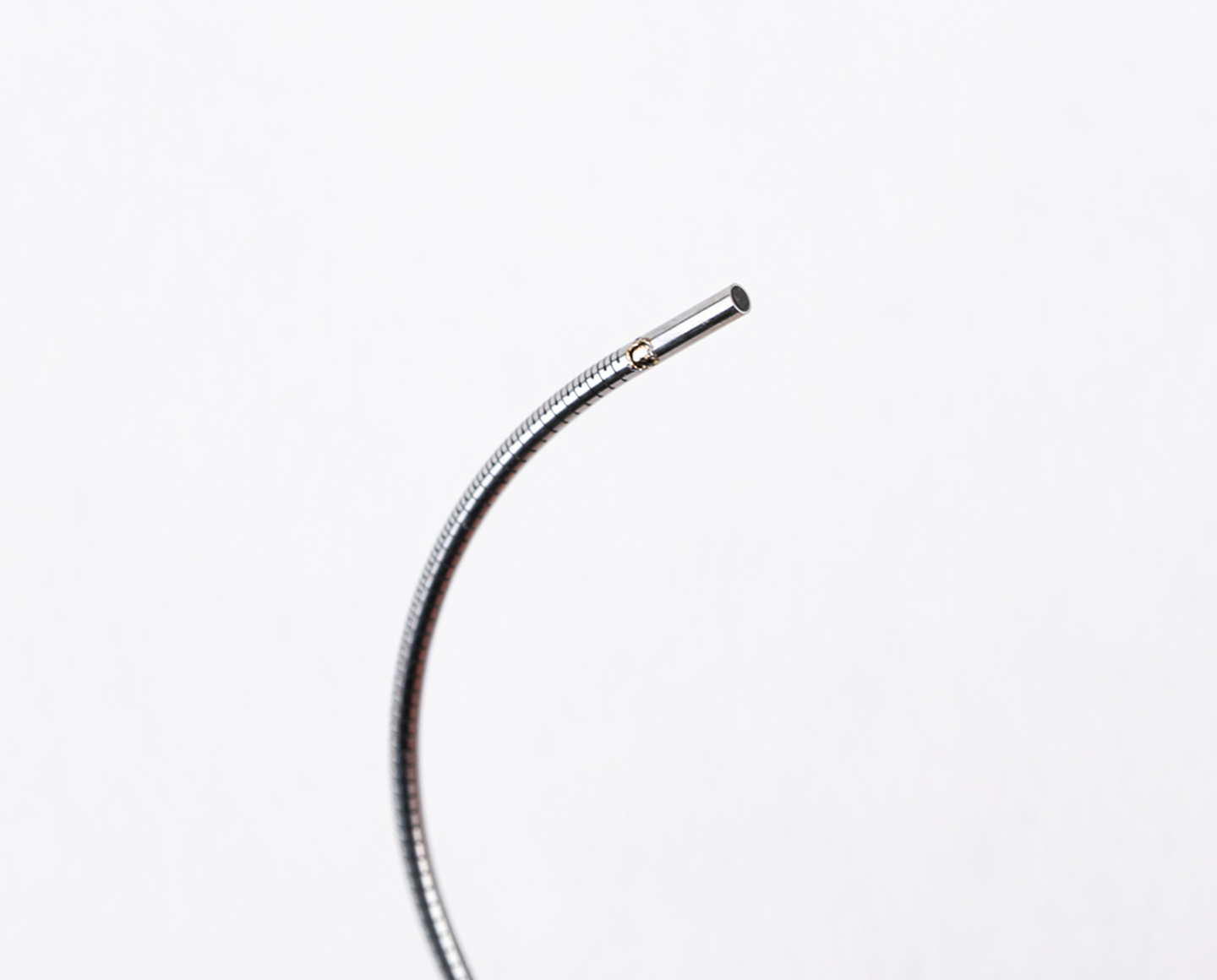

In use, the steerable tip is what sets the HDX apart, articulating ±170° in two directions to follow a bend, square up to a surface, or hold a target in view in real time. Inspectors retain full control of illumination and exposure through the adjustable LED, auto and manual exposure modes, push-button 90° image rotation, and on-screen display of all camera settings.

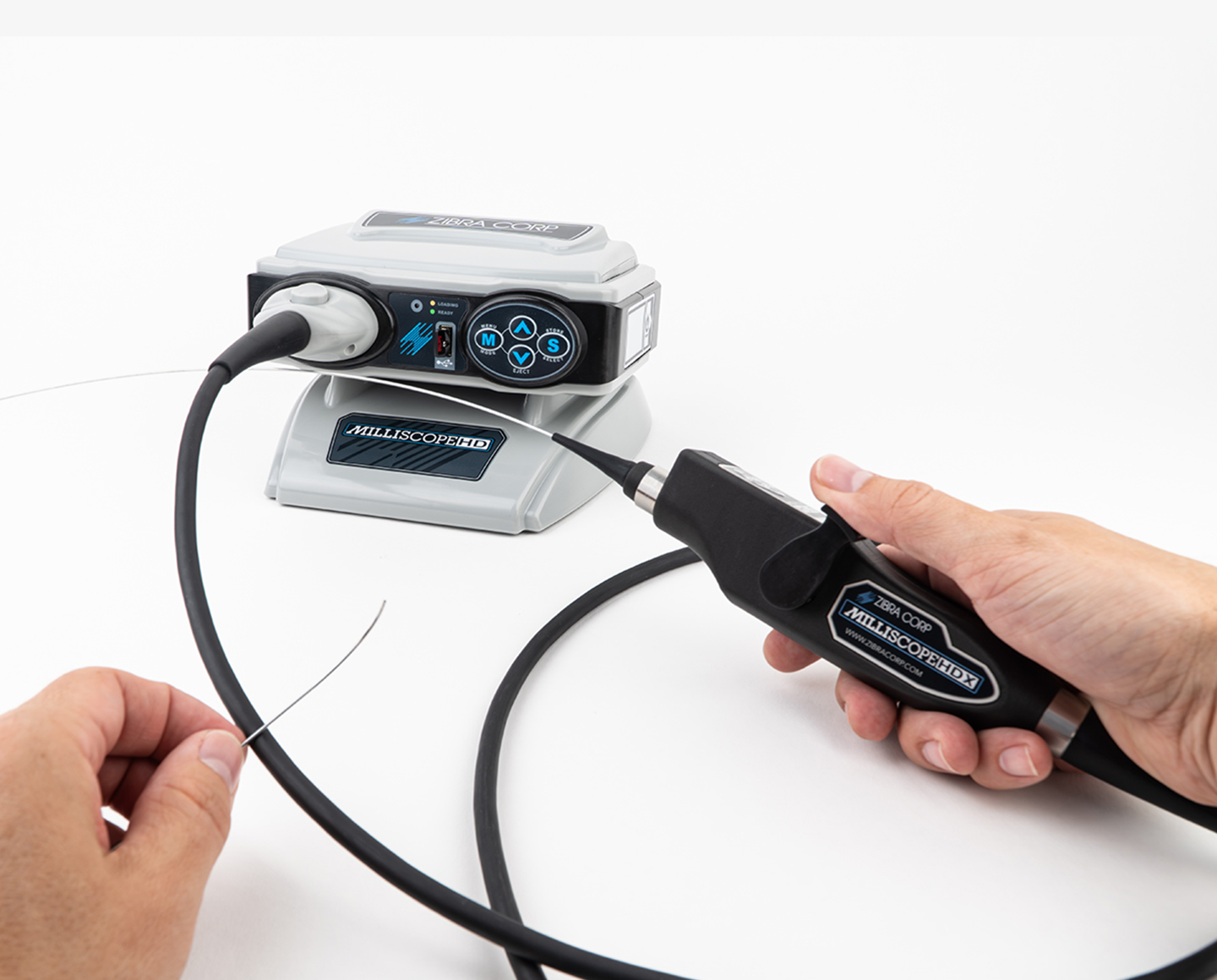

As part of Zibra Corp’s modular Milliscope platform, the HDX runs on the same Milliscope HD base unit as the HDV videoscope and fiberscope handle, so one system covers articulating video, standard video, and fiber inspection. Probes interchange in seconds. Designed, built, and serviced in the USA by a manufacturer with 40+ years in small-diameter optics, the HDX pairs articulation with the resolution and durability demanding inspection requires.

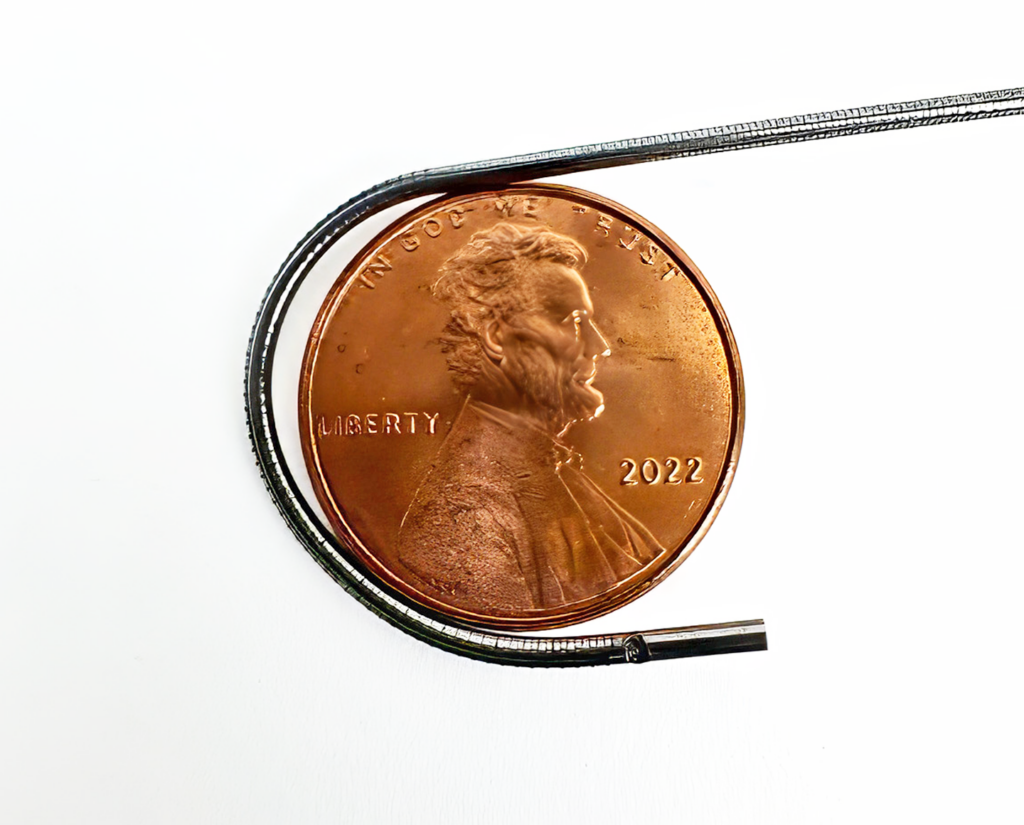

Milliscope HDX bend radius example: 2022 United States penny
Zibra Corp is committed to providing the highest levels of customer service. All equipment is serviced in-house at our Massachusetts headquarters, with free, no-obligation repair evaluations, including scopes made by other manufacturers!
